Plotting energyRt objects

Source: vignettes/articles/autoplot.Rmd
autoplot.Rmd

energyRt ships autoplot() methods (and, where natural, matching plot() methods) for most of its building-block classes. They turn an object into a ggplot, so the result can be themed and extended with + layers like any other ggplot.

Class What the plot shows
calendar the sub-annual time structure (stacked timeframe rows)
horizon the planning intervals / milestone years
commodity emission factors (@emis) — one or several commodities
supply, demand, import, export level parameters over years (given data + interpolation)
weather a sub-annual capacity/availability factor (heatmap, line or area)
library(energyRt)
library(ggplot2)   # provides the autoplot() generic

Calendars

The example calendars dataset holds a few ready-made calendar objects.

data("calendars", package = "energyRt")
names(calendars)
#> [1] "season_dn"                      "d365"
#> [3] "utopia_annual"                  "utopia_seasons"
#> [5] "utopia_s4h24"                   "utopia_m12h24"
#> [7] "d365_h24"                       "d365_h24_subset_1day_per_month"

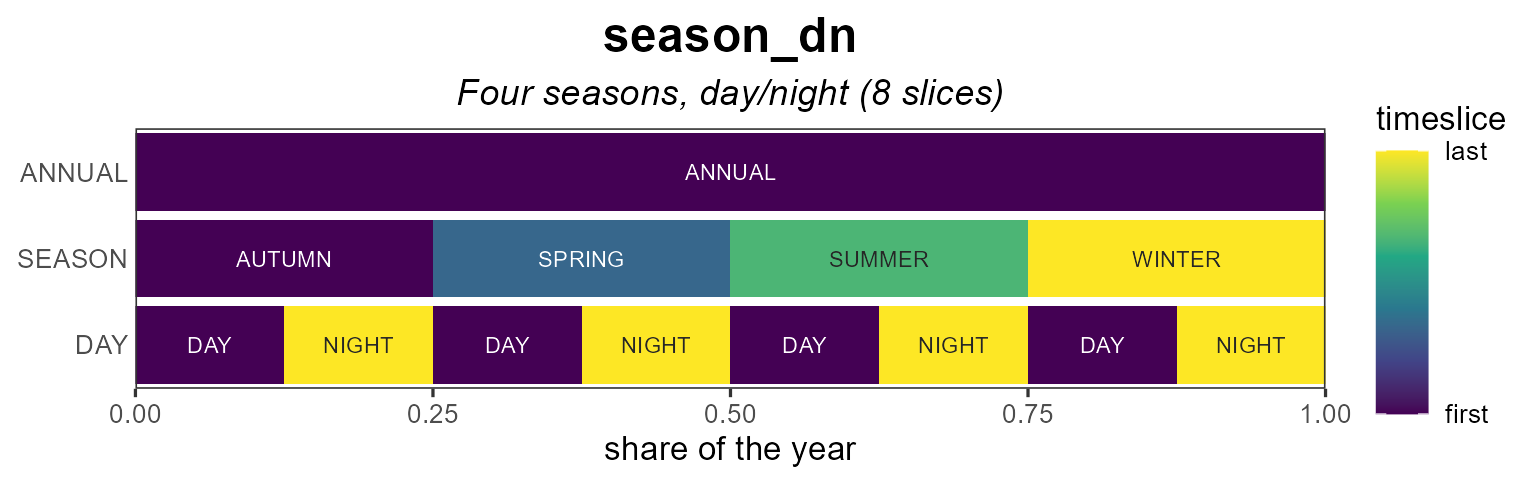

autoplot() (or the equivalent plot()) draws each timeframe as a row of rectangles sized by each slice’s share of the year:

autoplot(calendars$season_dn)

Coloring

For fill = "order" (the default) the color_pattern controls the gradient. "within" (default) colours each level over its own slices — so an hourly row shows a full h00→h23 cycle repeating every day, while "global" colours by absolute chronology across the whole year.

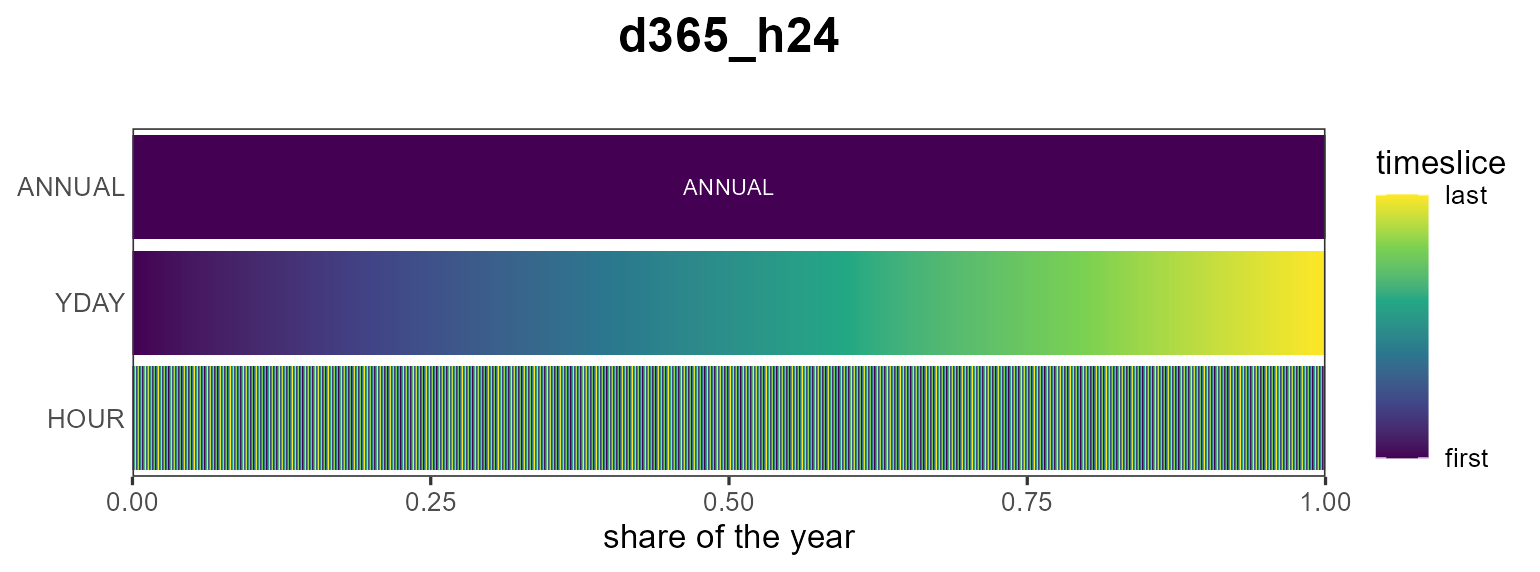

autoplot(calendars$d365_h24)                          # within (default)

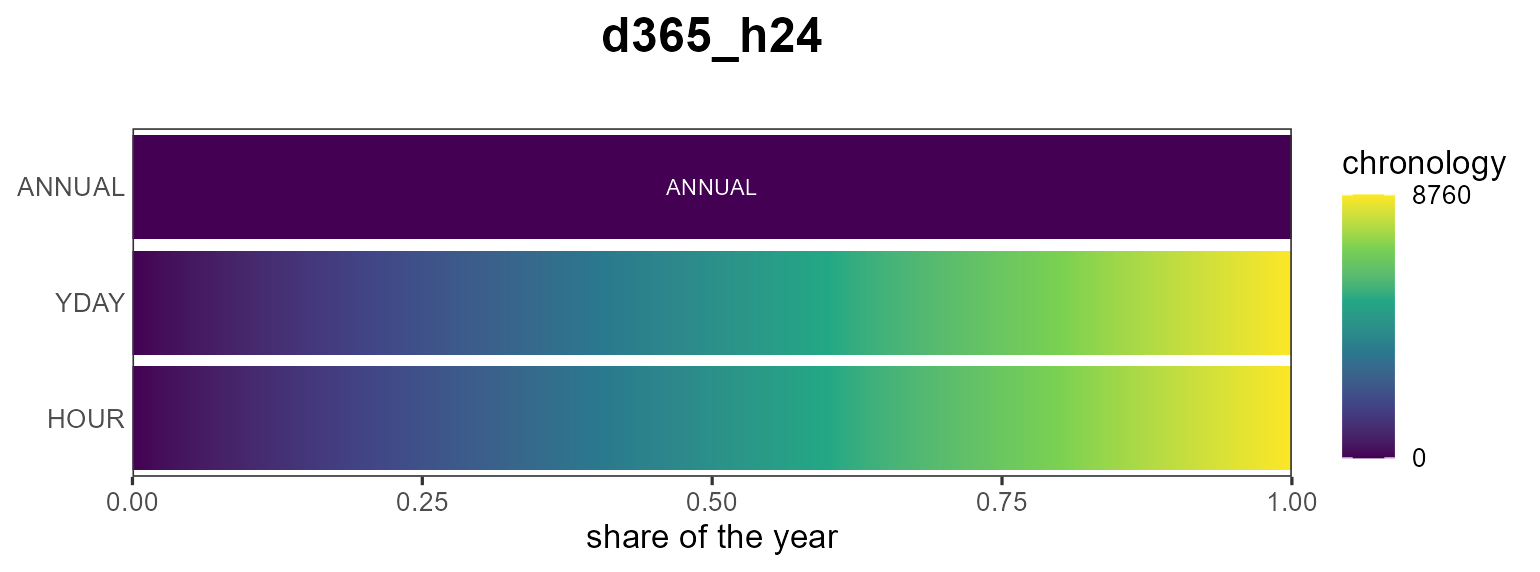

autoplot(calendars$d365_h24, color_pattern = "global")

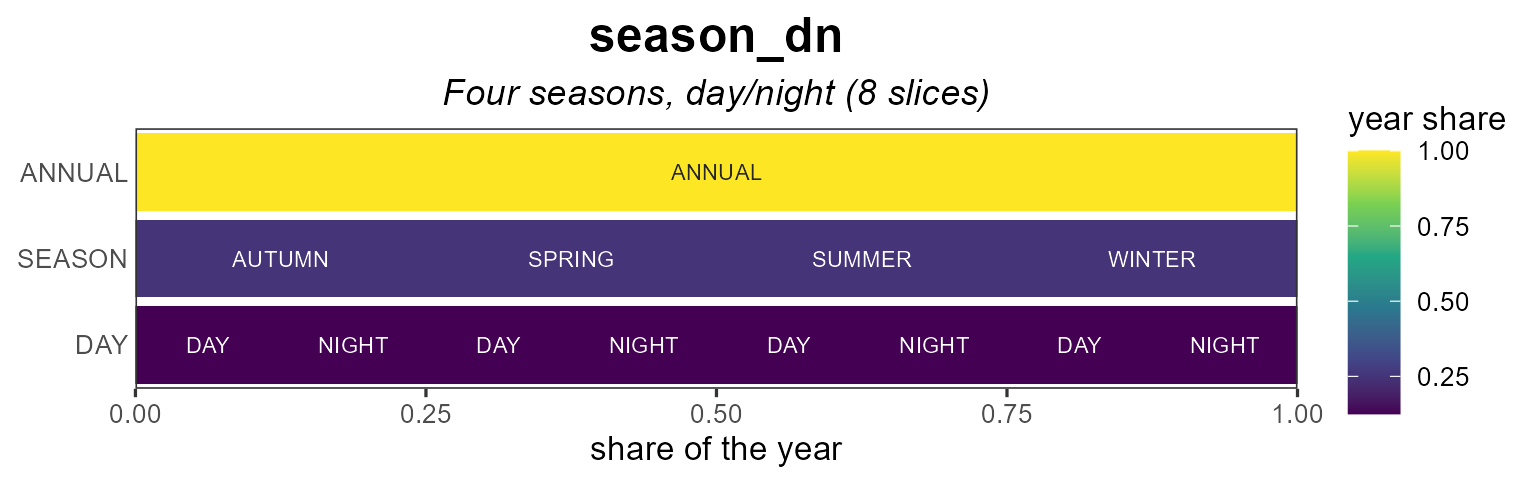

Other fill metrics are the slice "share" and "weight":

autoplot(calendars$season_dn, fill = "share")

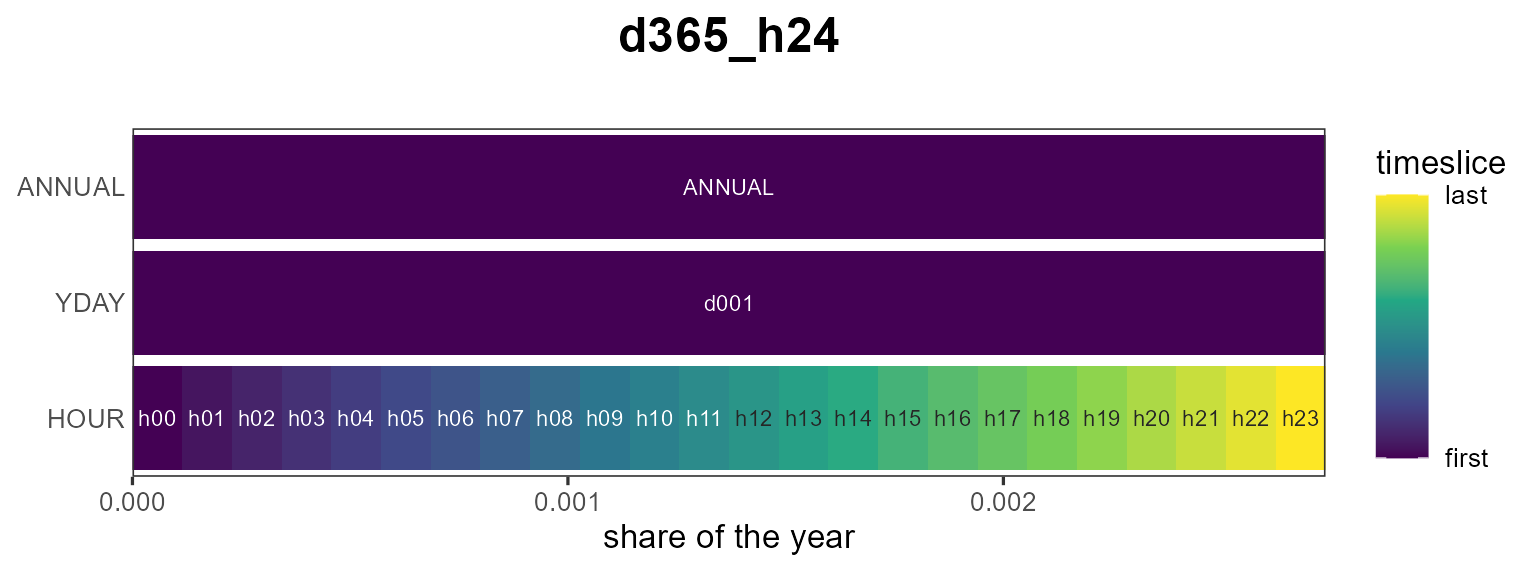

Labels

Each cell can be labelled by its individual level name ("name", the default, e.g. h00…h23) or by the full slice path ("slice", e.g. d001_h00). Label text auto-contrasts with the fill; override it with label_color.

# zoom (see below) so labels are legible
autoplot(calendars$d365_h24,
         show_leafs = list(YDAY = "d001", HOUR = 1:24),
         label_by = "name")

Zooming with show_leafs

show_leafs selects which slices to draw. Pass a named list to filter per timeframe level (character = slice names, numeric = positions among that level’s slices), or an unnamed vector to filter the finest level directly.

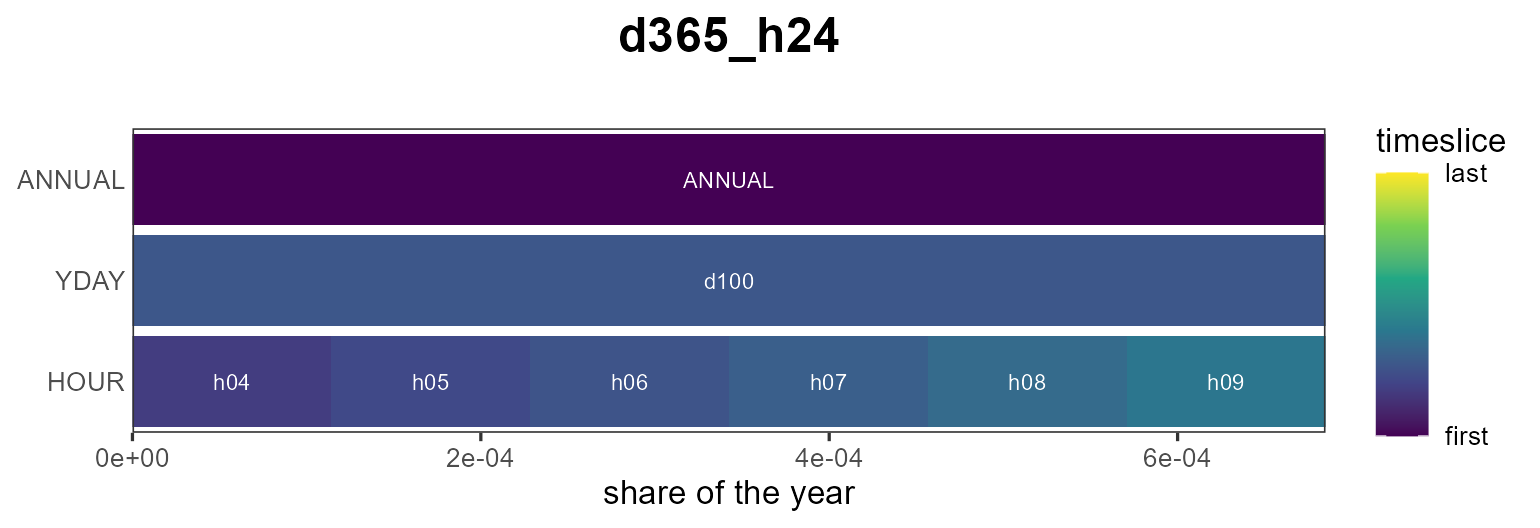

# day 100, hours 5-10
autoplot(calendars$d365_h24, show_leafs = list(YDAY = "d100", HOUR = 5:10))

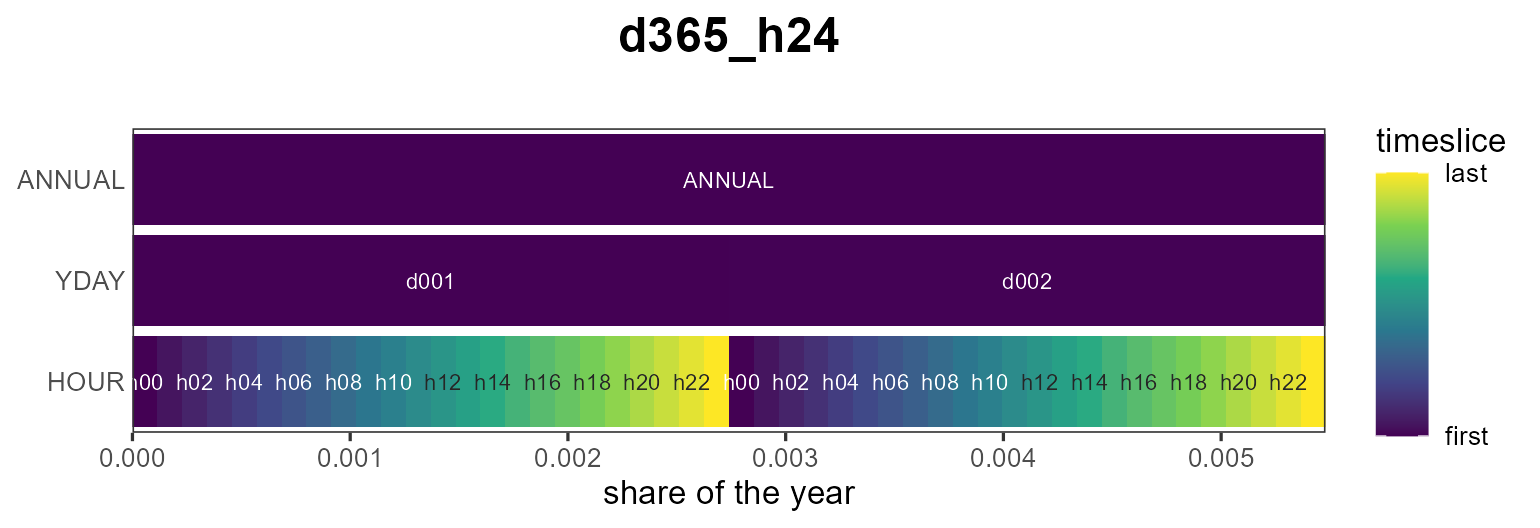

# the first 48 leaf slices (first two days)
autoplot(calendars$d365_h24, show_leafs = 1:48)

Subset view

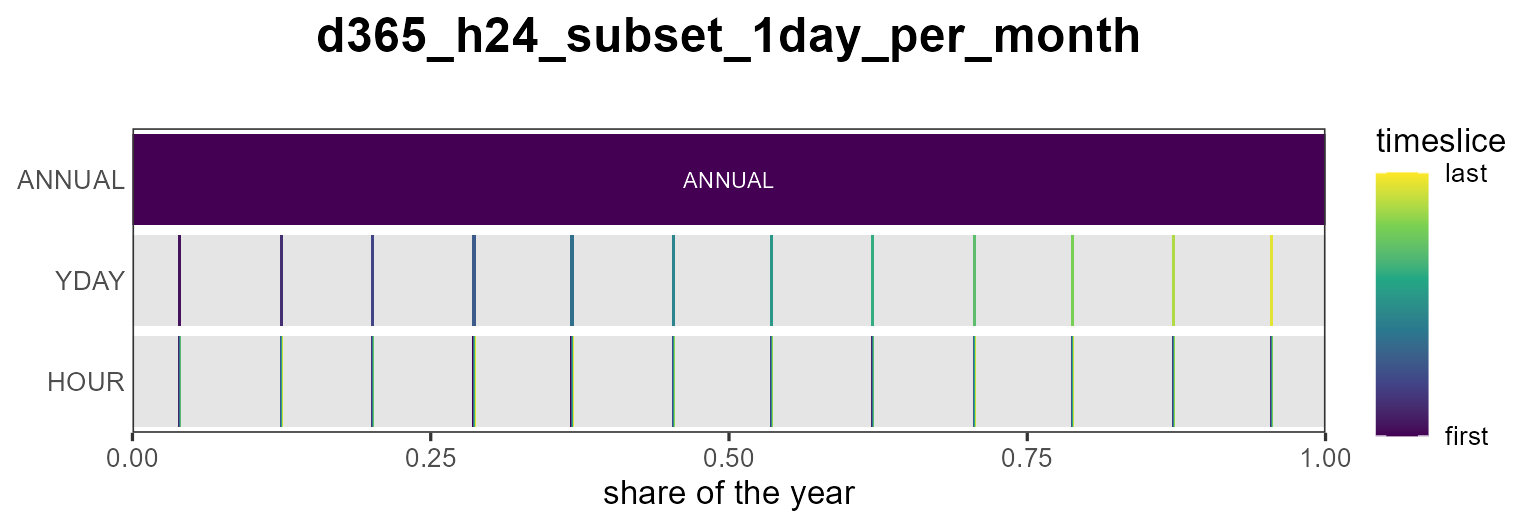

A reduced calendar can be shown against a full reference calendar: pass the full one as reference. The slices present in the subset are filled; the rest are left empty.

autoplot(calendars$d365_h24_subset_1day_per_month,
         reference = calendars$d365_h24)

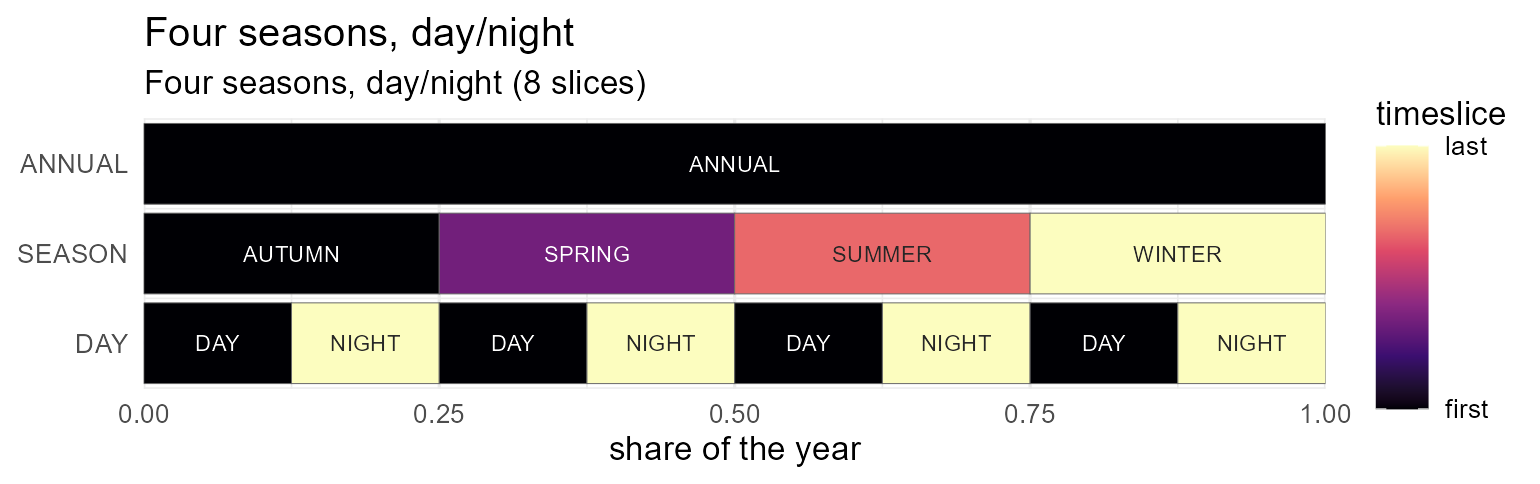

Styling

border outlines the rectangles (off by default so dense rows read as a smooth gradient) and palette picks the viridis option; and because the result is a ggplot you can keep customizing it:

autoplot(calendars$season_dn, palette = "magma", border = "grey40") +
  labs(title = "Four seasons, day/night") +
  theme_minimal()

Heatmaps

autoplot() lays every slice out in one row per timeframe. When a value is indexed by a two-dimensional calendar — day-of-year × hour, month × hour — a heatmap reads more naturally: plot_heatmap() puts the finest timeframe on y, the next on x, and any coarser levels into facets. The layout is taken from the calendar (pass it as calendar =), or guessed from the slice names with tsl_guess_format().

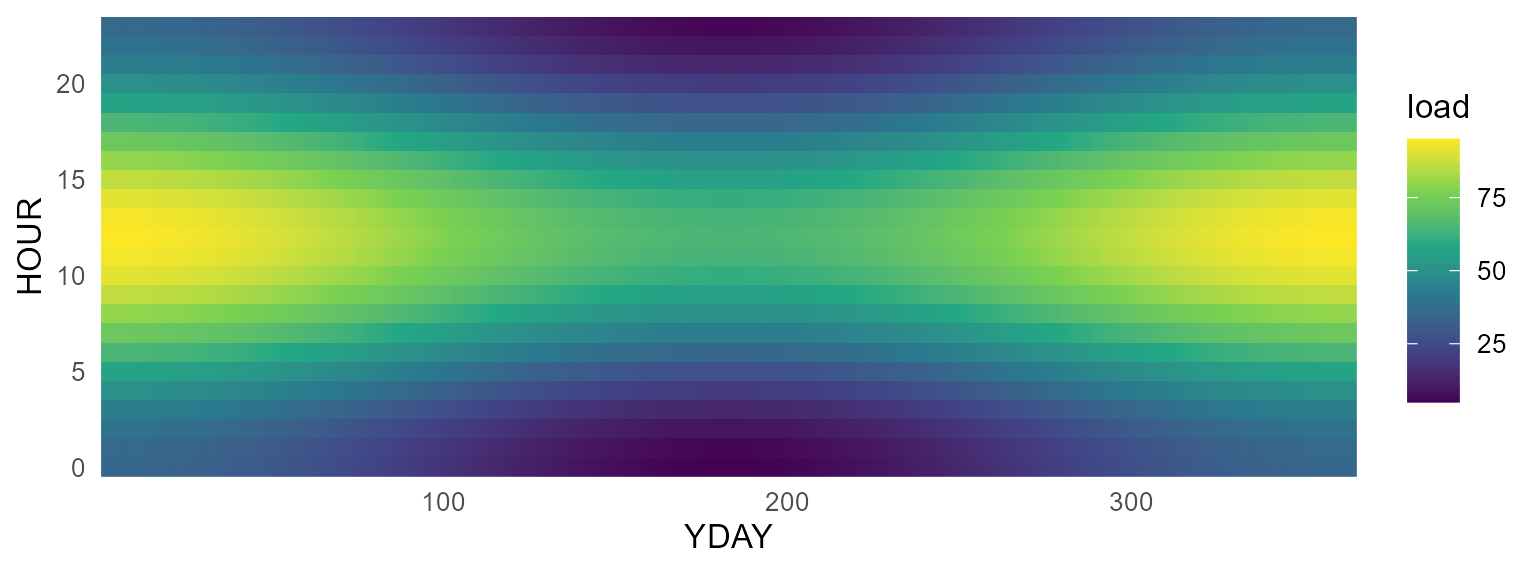

Here is a synthetic hourly load profile on the d365_h24 calendar (a daily cycle plus a seasonal swing). The diurnal band and the winter/summer contrast are immediately visible:

cal  <- calendars$d365_h24
tt   <- cal@timetable
prof <- data.frame(
  slice = tt$slice,
  load  = 50 + 30 * sin(2 * pi * (tsl2hour(tt$slice) - 6) / 24) +
                15 * cos(2 * pi *  tsl2yday(tt$slice)      / 365))

plot_heatmap(prof, calendar = cal, value = "load")   # x = YDAY, y = HOUR

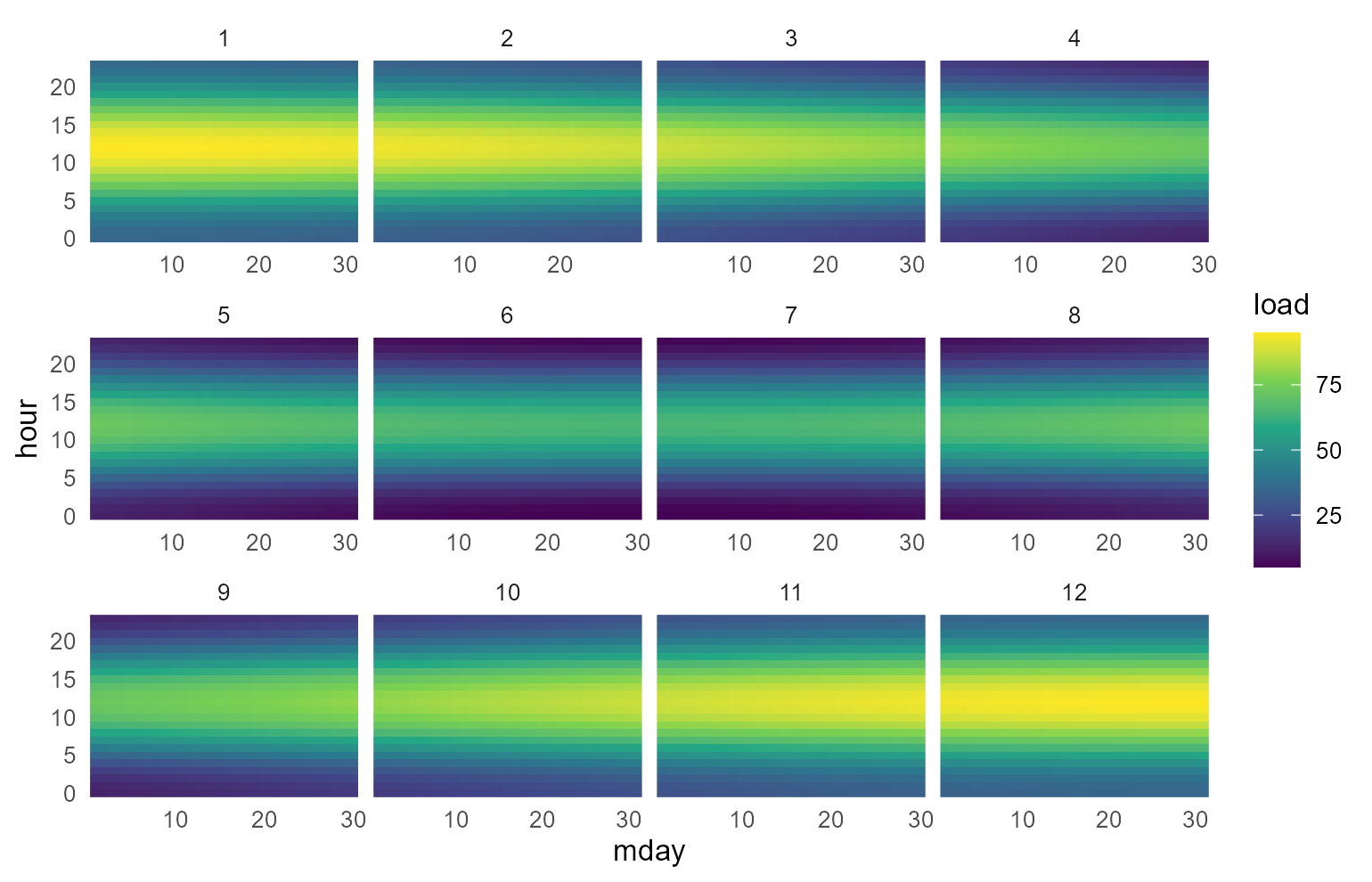

Facet a day-of-year format by "month" to get one day-of-month × hour panel per month:

plot_heatmap(prof, value = "load", facet = "month")  # 12 monthly panels

palette selects the viridis option and name labels the colour bar, exactly as for autoplot().

From model objects

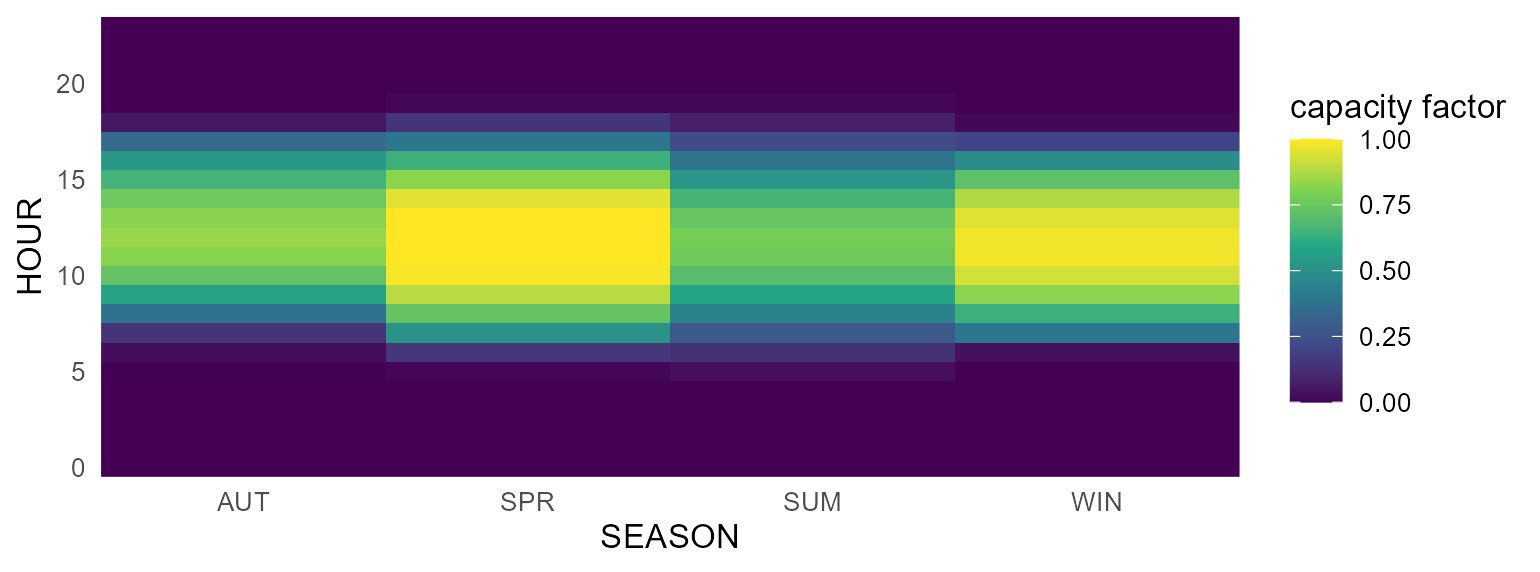

Any slice-indexed model data lays out the same way. Here electricity demand and a solar capacity factor from the packaged UTOPIA kit, on its season × hour calendar (utopia_s4h24): pull the object with getObject(), take one region (and, for demand, one year), and pass the slice + value columns to plot_heatmap(). The name argument carries the value’s unit onto the colour bar.

repo <- utopia_modules$electricity$reg3$repo
wcal <- calendars$utopia_s4h24

DEM <- getObject(repo, name = "DEM_ELC", drop = TRUE)
dem <- subset(as.data.frame(DEM@dem), region == "R1" & year == 2050)

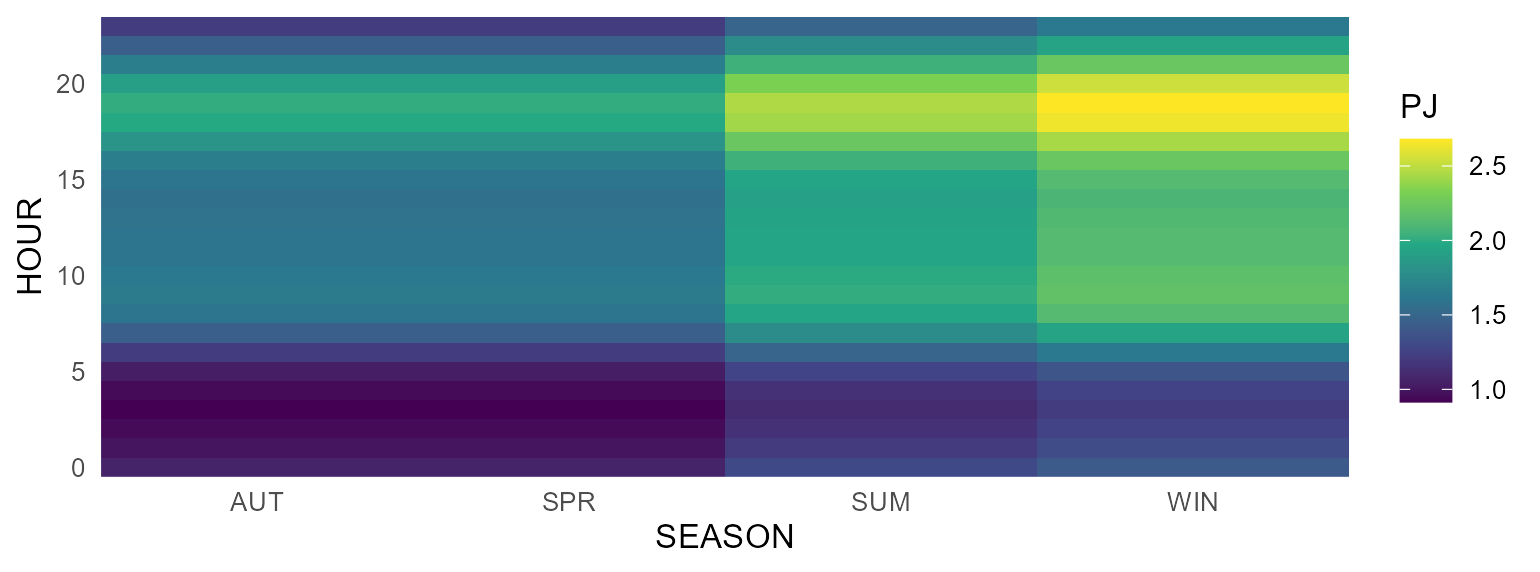

plot_heatmap(dem[, c("slice", "dem")], calendar = wcal, value = "dem", name = "PJ")

WSOL <- getObject(repo, name = "WSOL", drop = TRUE)
wsol <- subset(as.data.frame(WSOL@weather), region == "R1")
plot_heatmap(wsol[, c("slice", "wval")], calendar = wcal, value = "wval",
             name = "capacity factor")

The weather heatmap is exactly what autoplot() draws for a weather object directly — with line and area variants too (see Weather below).

Horizons

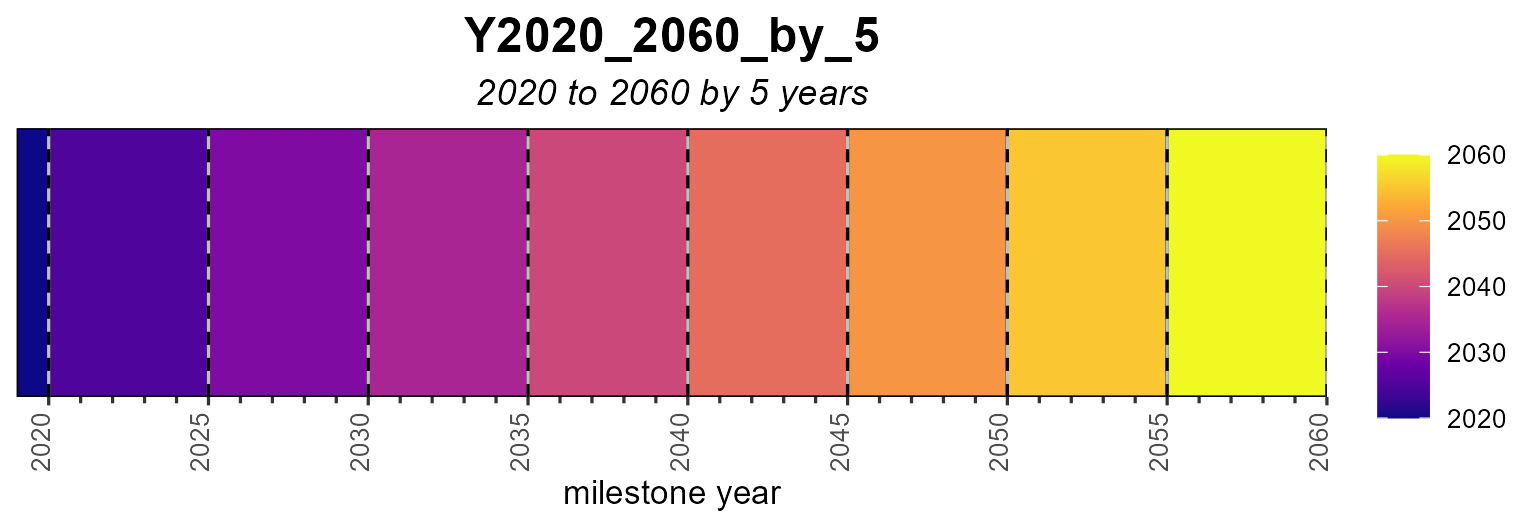

horizon objects draw the modelled intervals over milestone years:

data("horizons", package = "energyRt")
autoplot(horizons$Y2020_2060_by_5)

Commodities

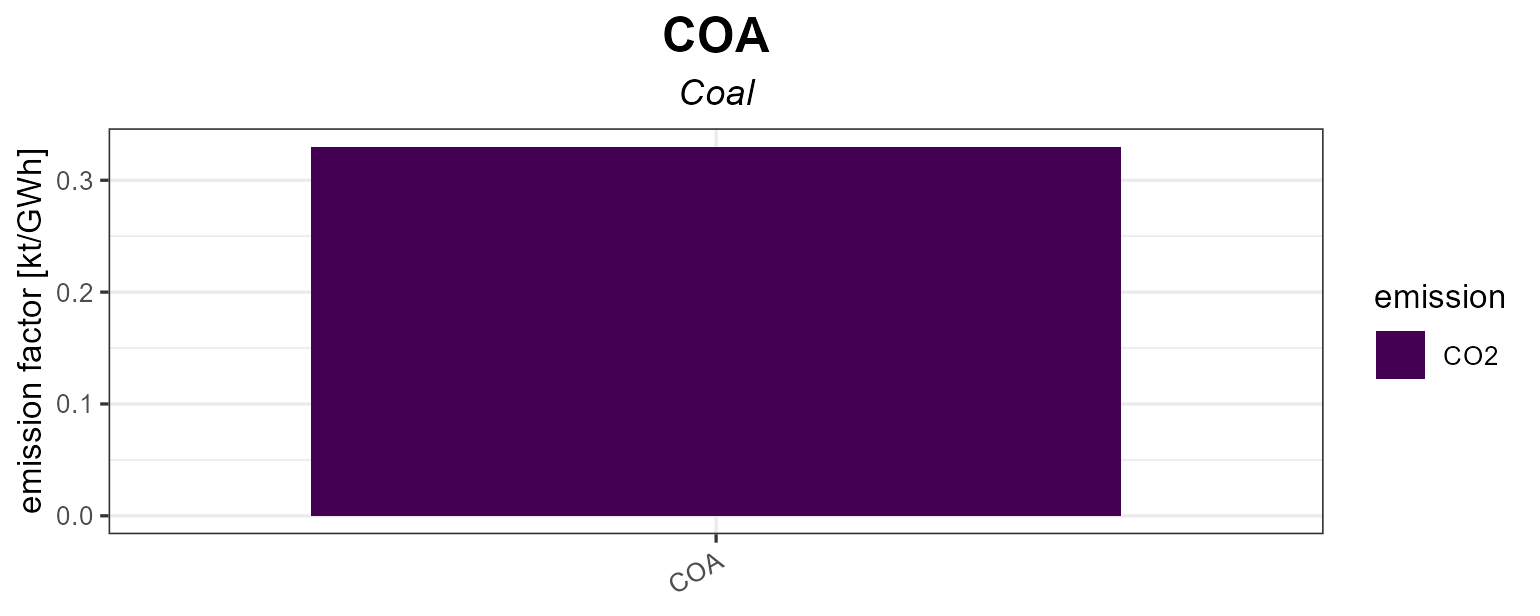

For a commodity, autoplot() shows its emission factors (@emis). Passing several commodities compares their emission intensities side by side.

COA <- newCommodity("COA", desc = "Coal",
                    emis = data.frame(comm = "CO2", unit = "kt/GWh", emis = 0.33))
OIL <- newCommodity("OIL", emis = data.frame(comm = "CO2", unit = "kt/GWh", emis = 0.25))
GAS <- newCommodity("GAS", emis = data.frame(comm = "CO2", unit = "kt/GWh", emis = 0.18))

autoplot(COA)                 # a single commodity

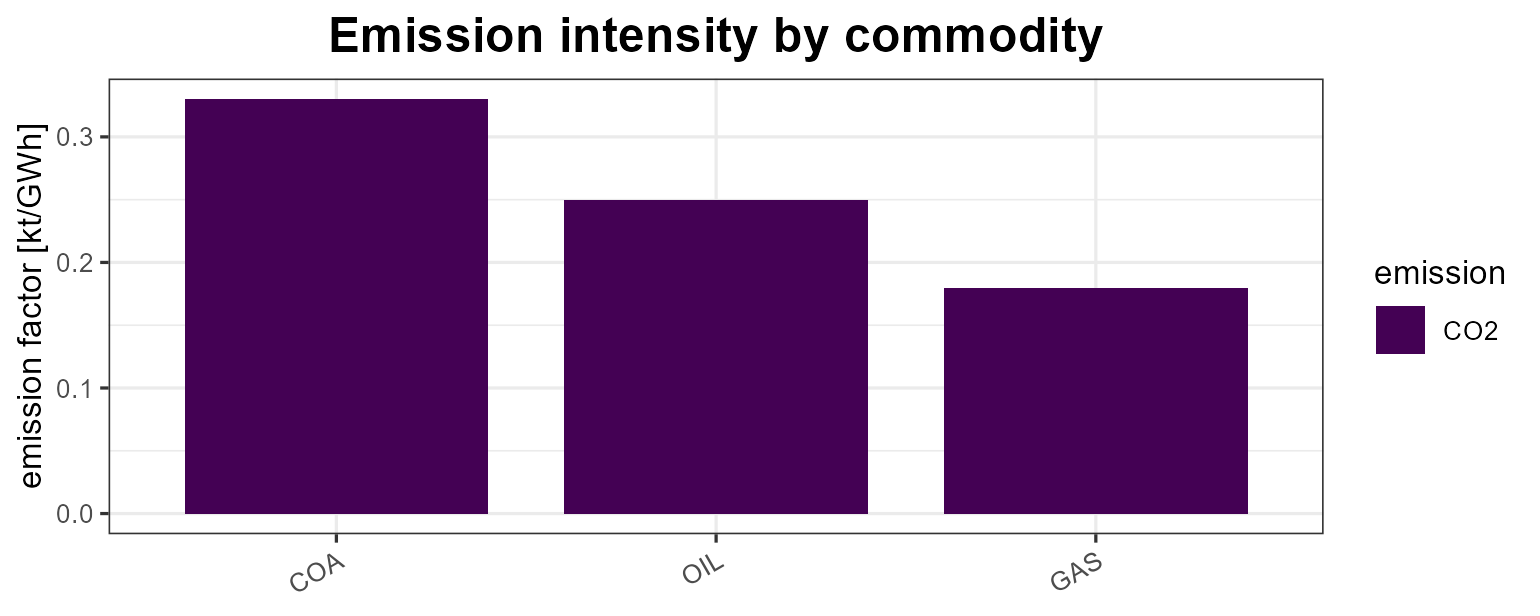

autoplot(COA, OIL, GAS)       # comparison

Supply, demand, import, export

These process objects are plotted by year: the points are the given data and the lines are the interpolation (both extracted with getData()). Level parameters are faceted by their base name so bounds and prices/costs keep separate y-scales.

SUP_COA <- newSupply(
  name = "SUP_COA", commodity = "COA", unit = "PJ", region = "R1",
  availability = data.frame(
    region = "R1", slice = "ANNUAL",
    year   = c(2020, 2040, 2020, 2020),
    ava.up = c(100,  200,  NA,   NA),
    ava.lo = c(NA,   NA,   10,   NA),
    cost   = c(NA,   NA,   NA,   30)))

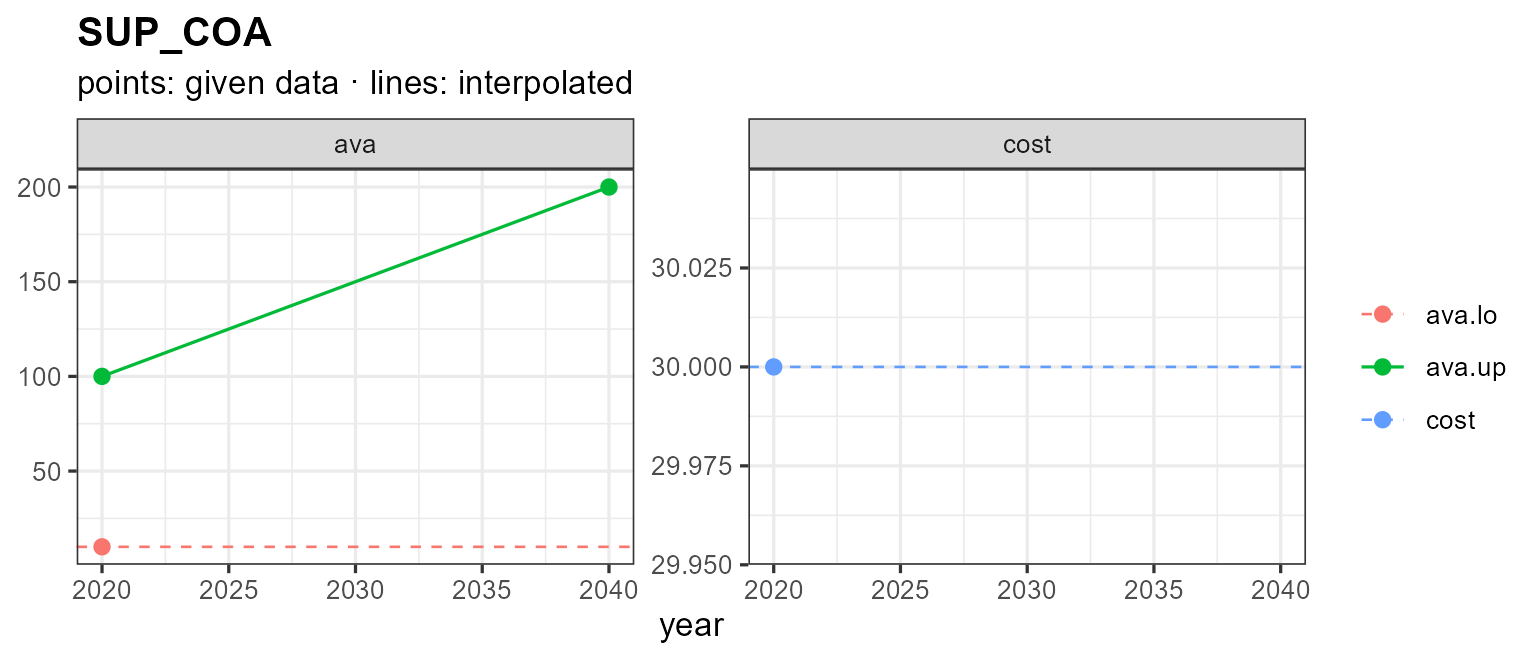

autoplot(SUP_COA)

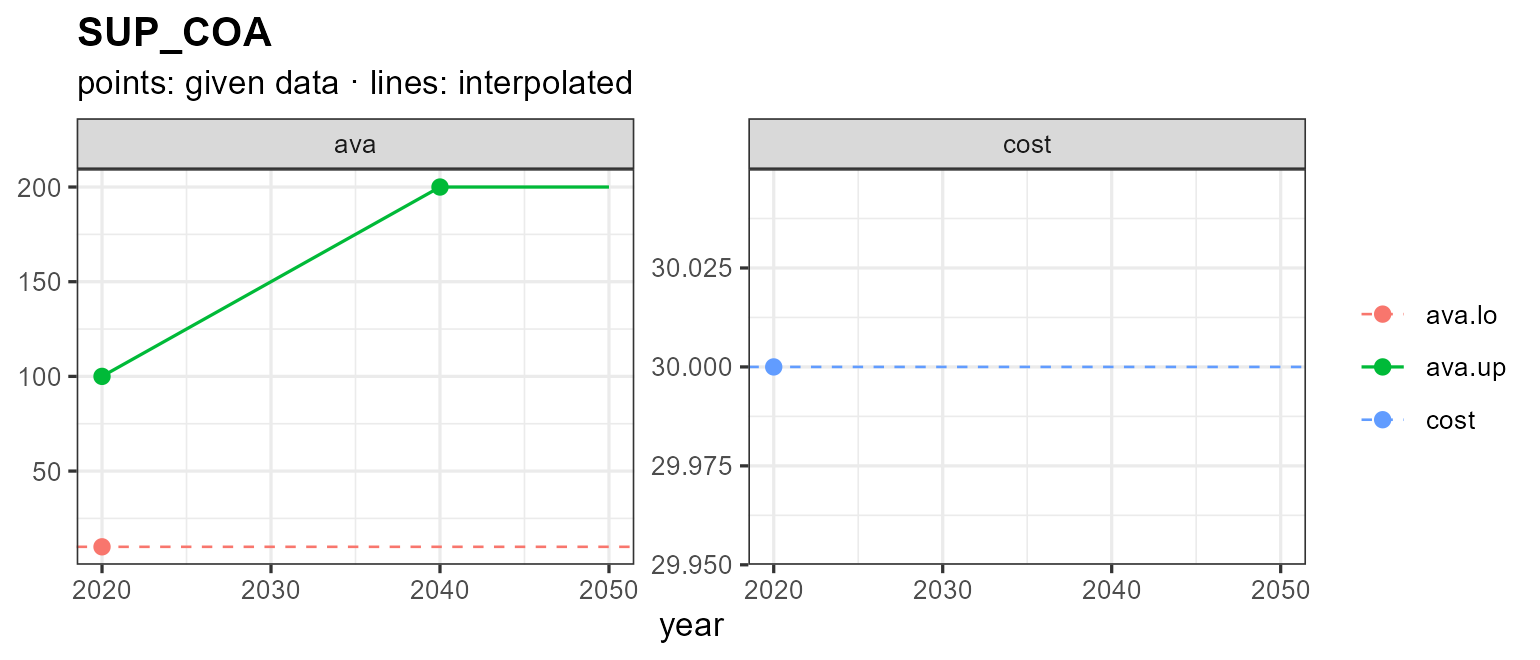

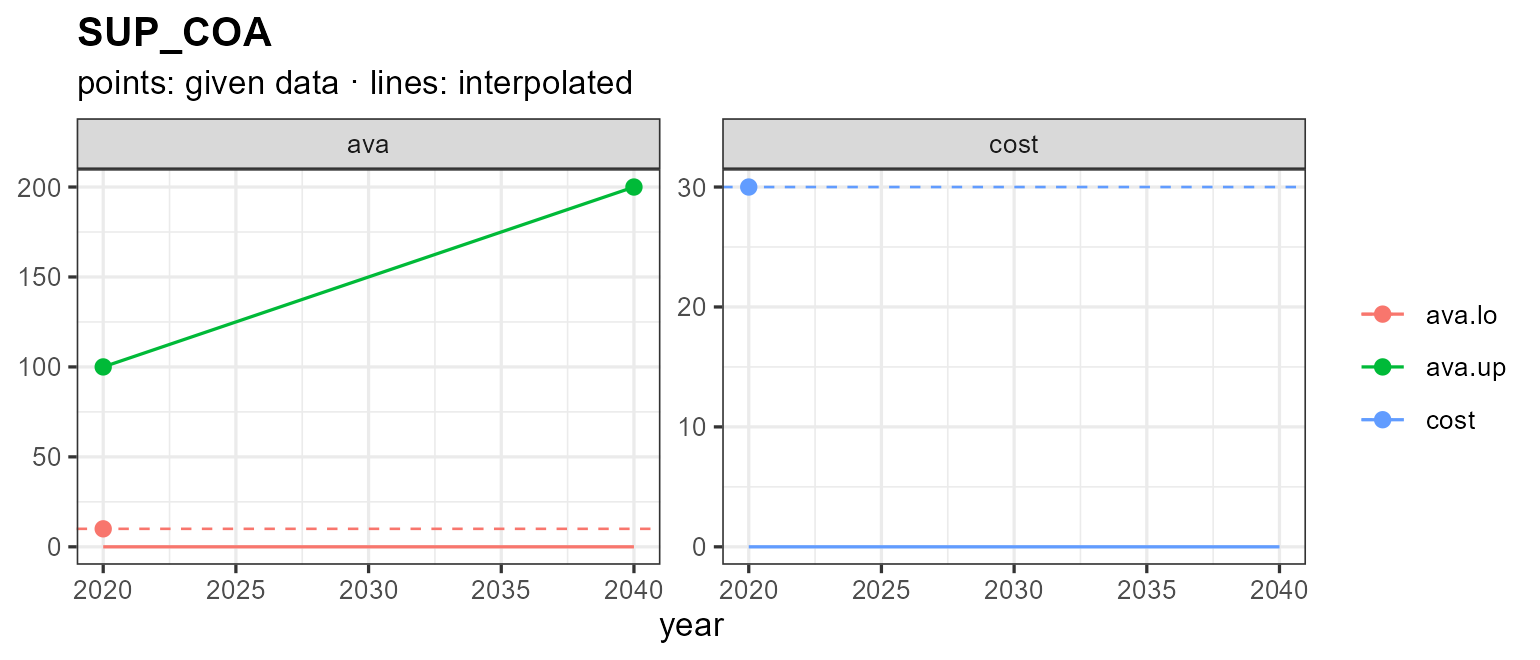

A single given value (or none) is drawn as a flat dashed line showing the interpolation direction. Pass years to interpolate over a specific horizon:

autoplot(SUP_COA, years = 2020:2050)

Demand, import and export follow the same pattern:

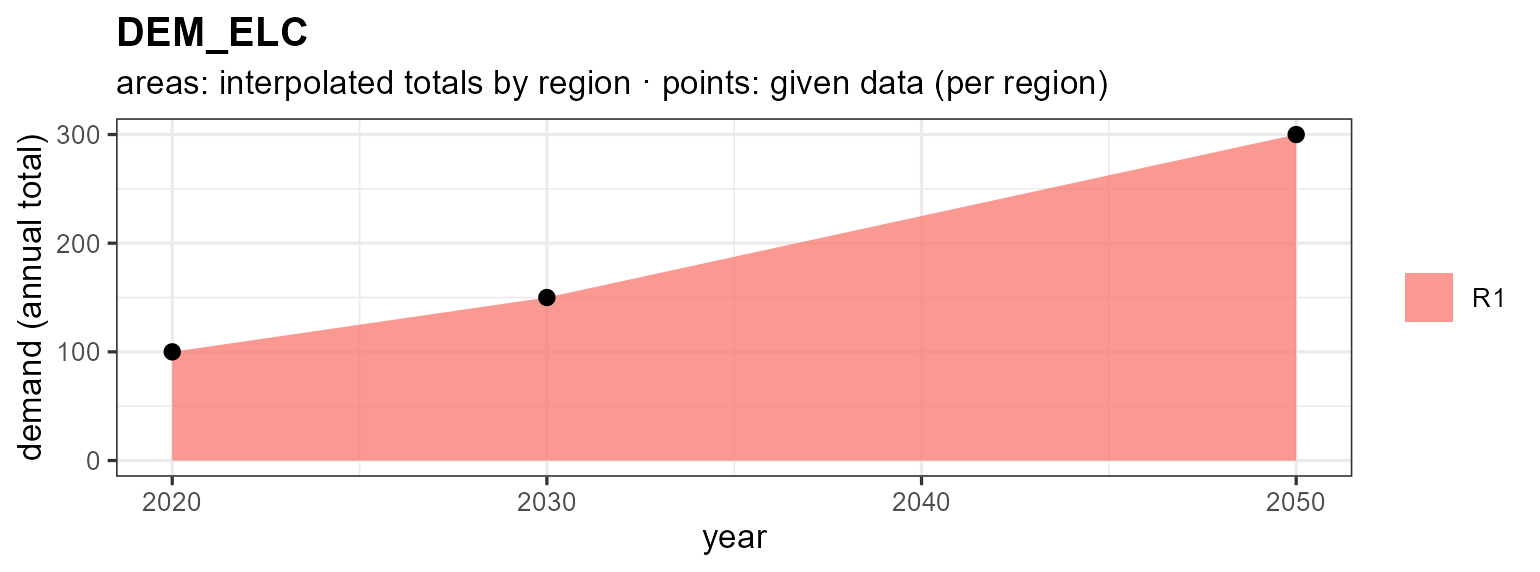

DEM_ELC <- newDemand(
  name = "DEM_ELC", commodity = "ELC", unit = "GWh",
  dem = data.frame(region = "R1", slice = "ANNUAL",
                   year = c(2020, 2030, 2050), dem = c(100, 150, 300)))
autoplot(DEM_ELC)

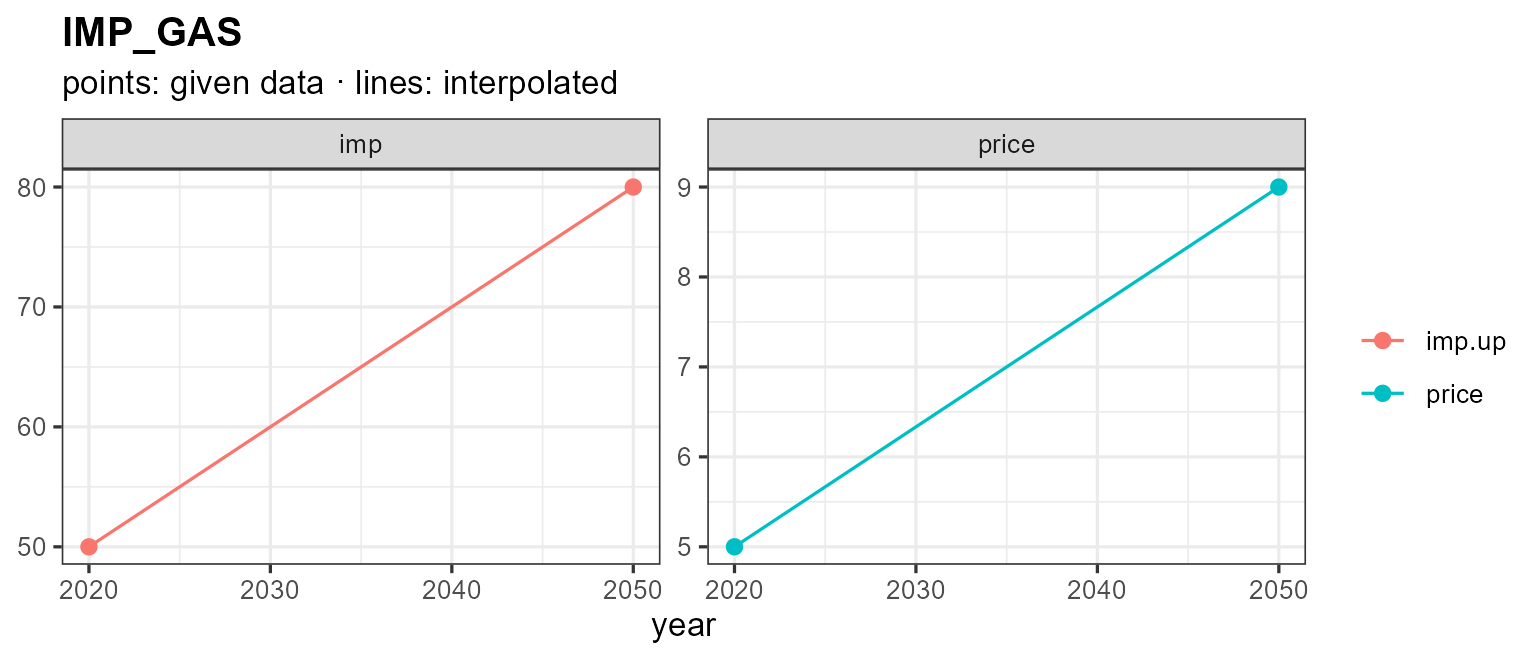

IMP_GAS <- newImport(
  name = "IMP_GAS", commodity = "GAS",
  imp = data.frame(region = "R1", slice = "ANNUAL",
                   year = c(2020, 2050), imp.up = c(50, 80), price = c(5, 9)))
autoplot(IMP_GAS)

Weather

weather objects hold a sub-annual factor — a capacity / availability factor — per region and slice. autoplot() offers three views via type =: a calendar heatmap (the default), and diurnal line / area charts. Because the slice layout (here season × hour) can’t be inferred from the slice names alone, pass the model’s calendar; the value’s unit (@unit, or "capacity factor" when unset) labels the value axis — the fill legend for the heatmap, the y-axis for line/area.

WSOL <- getObject(utopia_modules$electricity$reg3$repo, name = "WSOL", drop = TRUE)
wcal <- calendars$utopia_s4h24

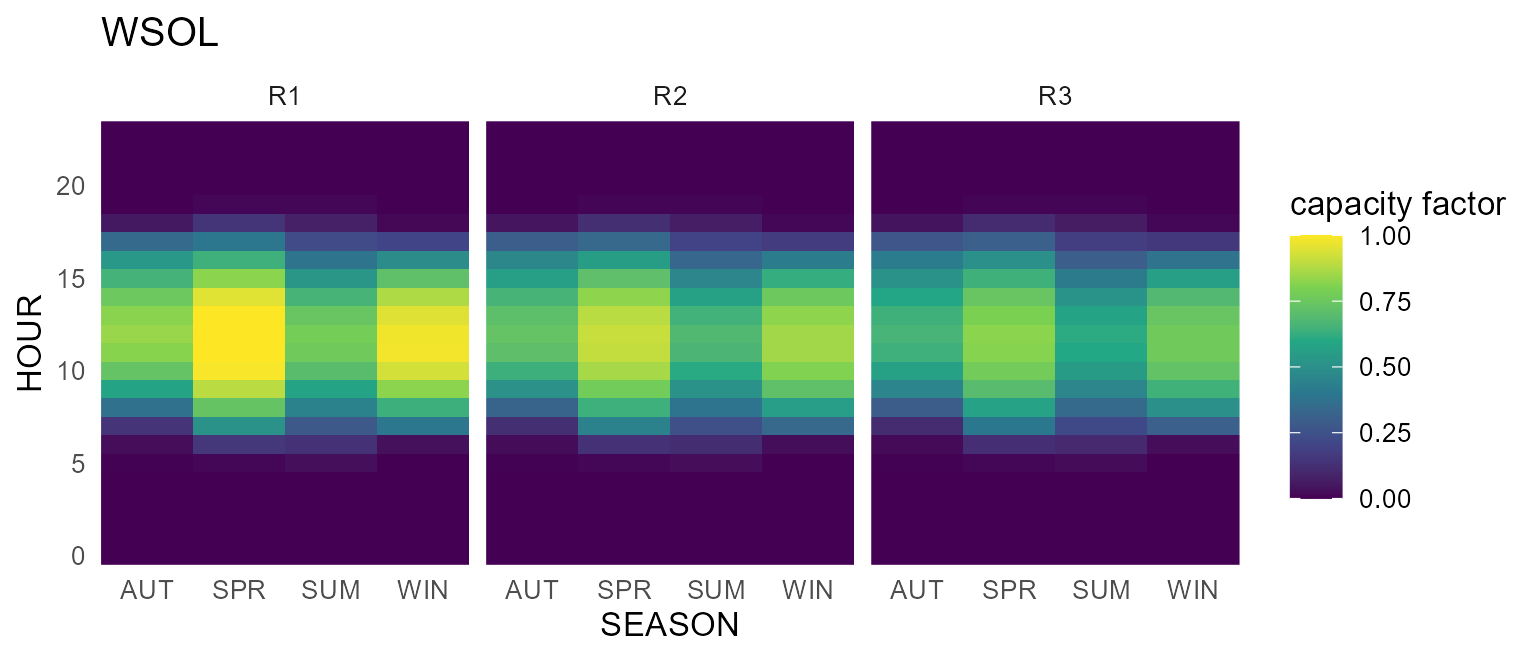

autoplot(WSOL, calendar = wcal)                    # heatmap (default), faceted by region

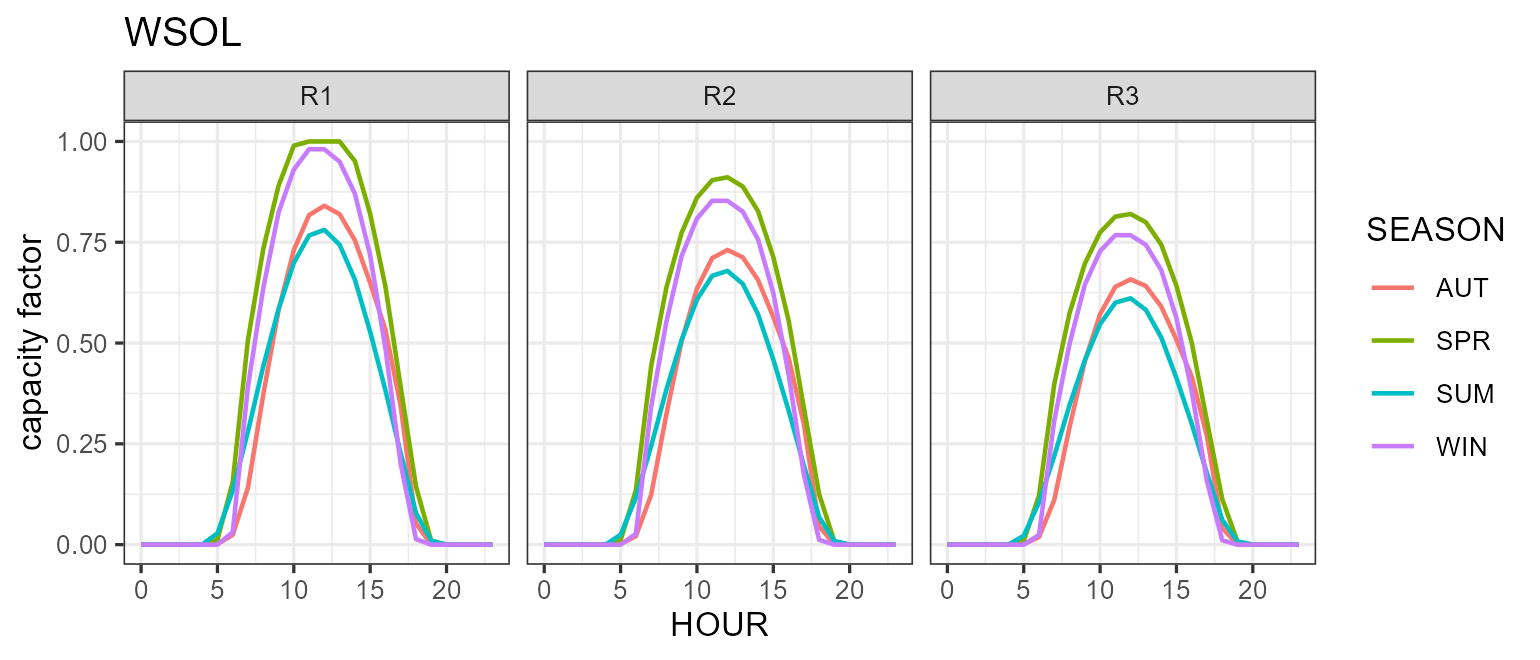

The line view reads the diurnal shape directly — one line per season, the capacity factor on the y-axis:

autoplot(WSOL, type = "line", calendar = wcal)

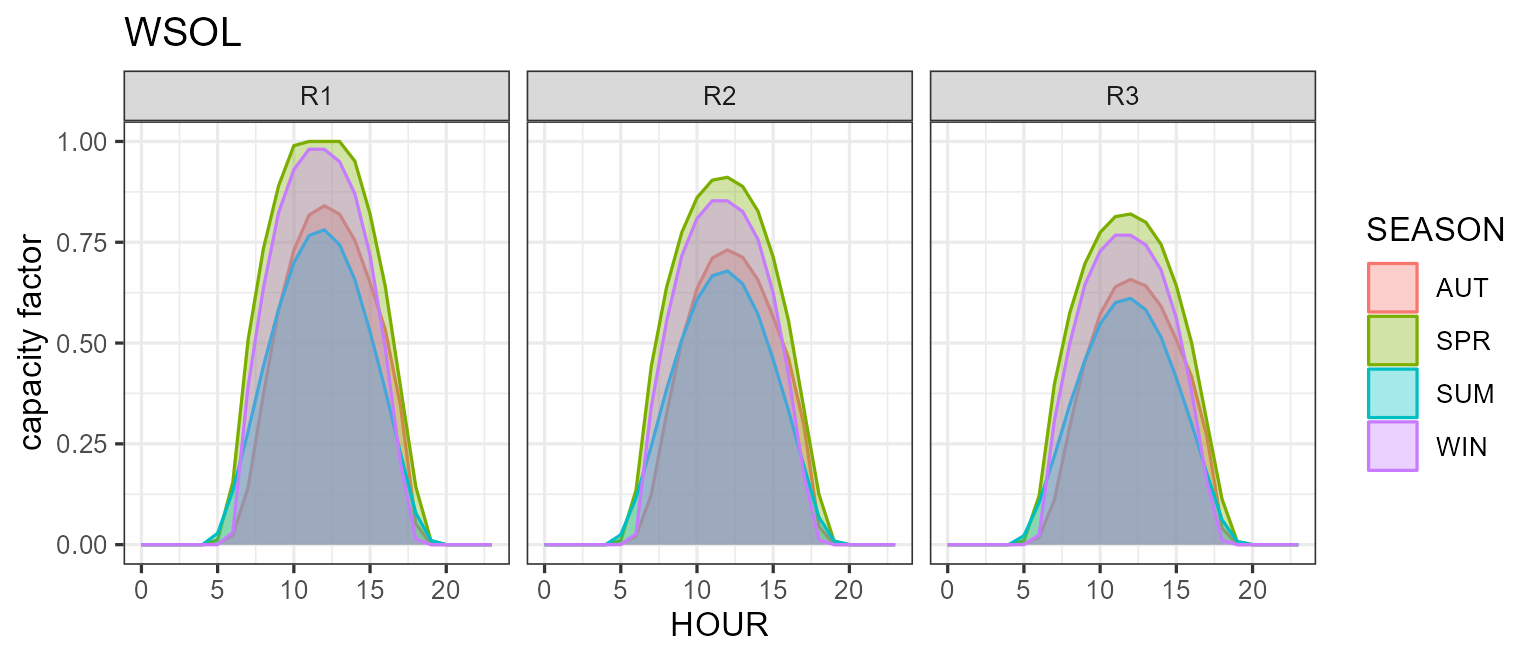

autoplot(WSOL, type = "area", calendar = wcal)     # or filled areas
